Vehicle-Specific Precision
Self-developed vehicle pattern data and high-precision cutting help shops match mainstream models accurately with a cutting error target of 0.3 mm or less.
A practical vertical film cutter for PPF, window film, color-change film, decals, and shop-standard cutting workflows.
Product Overview
Key details at a glance

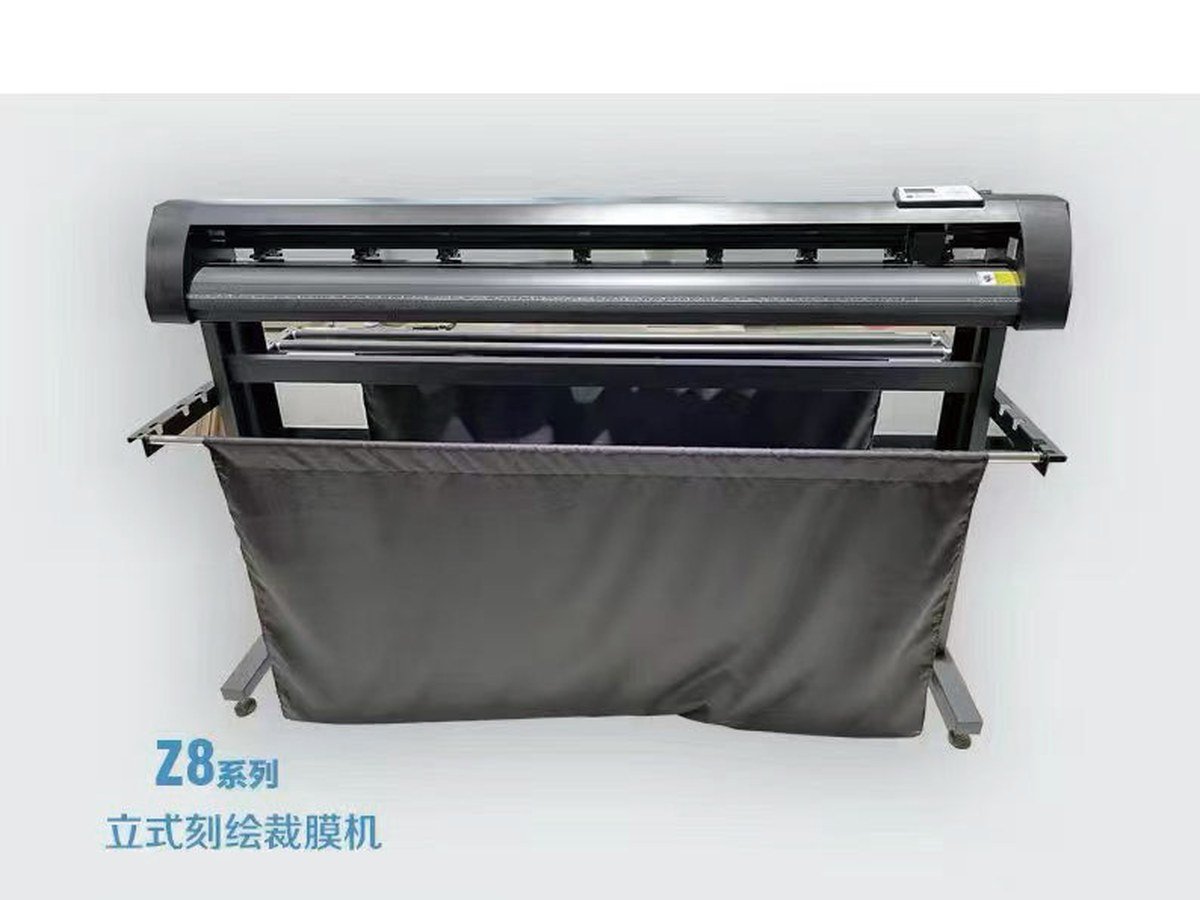

The ZhiTu Z8 is a vertical film cutter for wrap shops moving from manual trimming to vehicle-specific machine cutting. It combines high-precision feeding, movable pressure wheels, dual roll support, over-cut compensation, and segmented long-distance cutting for PPF, window film, color-change film, decals, and decorative film workflows.
Multi-Film Shop Efficiency
One machine supports PPF, window film, color-change film, decals, and decorative film, helping reduce repeated manual layout and trimming work.
Safer Standardized Installation
Machine-cut patterns reduce disassembly, emblem removal, and paint-surface knife work, while training and remote support make adoption smoother.
Product Specifications
| Max media width | 1750 mm |
|---|---|
| Max cutting width | 1630 mm |
| Max cutting speed | 1000 mm/s |
| Max cutting force | 1000 g |
| Drive system | High-precision stepper motor |
| Repeatability | 0.082 mm |
| Mechanical resolution | 0.025 mm |
| Motor speed | 0-3500 RPM |
| Minimum character size | Approx. 10 mm, varies by font, graphic, and material |
| CPU | 32-bit, 180 MHz |
| Package size | 207 x 33 x 40 cm |
| Machine size | 192 x 70 x 118 cm |
| Net/Gross weight | 44 kg / 57 kg |
| Software compatibility | Windows 7/8/10; CorelDRAW/Illustrator plug-ins via USB cable or USB drive |
| Power supply | 100-240 VAC, 50/60 Hz |
| Power | 150 W |
| Working environment | +5 C to +35 C; 35%-70% RH non-condensing |
| Stand | Included |
